SCATT Biathlon USB

is used for the training of Biathletes. This system has five targets set at a distance of 5 meters and imitates shooting at 50 meters. This system not only measures fixed aiming trajectory, but also the weapon’s trajectory movement onto the next target.

* Warranty terms

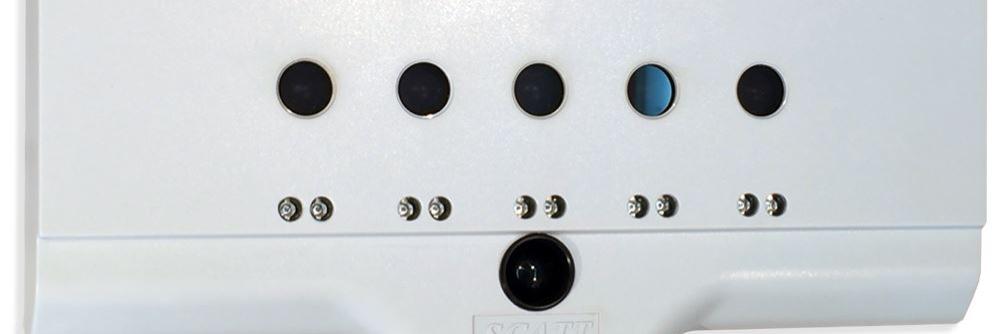

Electronic target (Model: SBT-5) placed on 5 meters distance (hangs on the wall or mounted on a photo tripod), connected to the control unit, without requiring a separate power supply. Target equipped LED indicators of impact and has a built-in wireless connectivity, this allows use it with wireless optical sensors SCATT.

Optical sensor (Model: OS-02) fixed on the firearm, this highly accurately measures the weapon"s alignment during aiming and actuation of the trigger mechanism. Metal fasteners of different dimensions, for use with various diameter barrels, allow the sensor to be fixed to the barrel. Optical sensor automatically measures the distance to the electronic target. The program allows you to automatically calibrate the sensor relative to the sighting of weapons, so there is no need for an amendment to the sights of weapons. Sensor automatically compensates for the "blockage of weapons! For the convenience of an optical sensor has a detachable cable and a convenient system mounting on the weapon, which allows you to vary the sensor position with respect to weapons. Optical sensor is connected directly to a USB port on your computer. Weight 30g.

Electronic target control (Model: WTC-01) connect to USB port of a computer by cable.

Mounting kit for the optical sensor includes allen key, mounting prism and metal strip with screw that are used for fixing the sensor on the barrel of different diameters and cross sections. At the request of the customer set can be beefed up with extra fastenings see Fasteners (to secure optical sensor on the gun).

Target interface cable used to connect the electronic target to the control unit, has a length of 7m.

Optical sensor"s interface cable used to connect the optical sensor to USB port of your computer, has a length of 3m.

Target control unit"s interface cable used to connect the control unit to USB port of your computer, has a length of 1,5m.

Software SCATT Biathlon software has all the necessary features for efficient training and overall analysis of shooting results. Results are displayed in both digital and graphic forms and can be saved onto disk for further analysis (aim trajectory, shots and graphics, etc).

• Trigger sensor STS

• Trigger sensor WTS (For kit with wireless optical sensor model WS-03 only)

• SCATT carrying bag

• SCATT & laptop carrying bag

If you have difficulty with choosing the model of simulator SCATT, most suitable for you, use the table comparing the characteristics of simulators SCATT.
