SCATT WM9

is used for fixed target training at distances from 4 to 6 meters and imitates shooting up to 300 meters, using pistols of 9mm caliber.

* Warranty terms

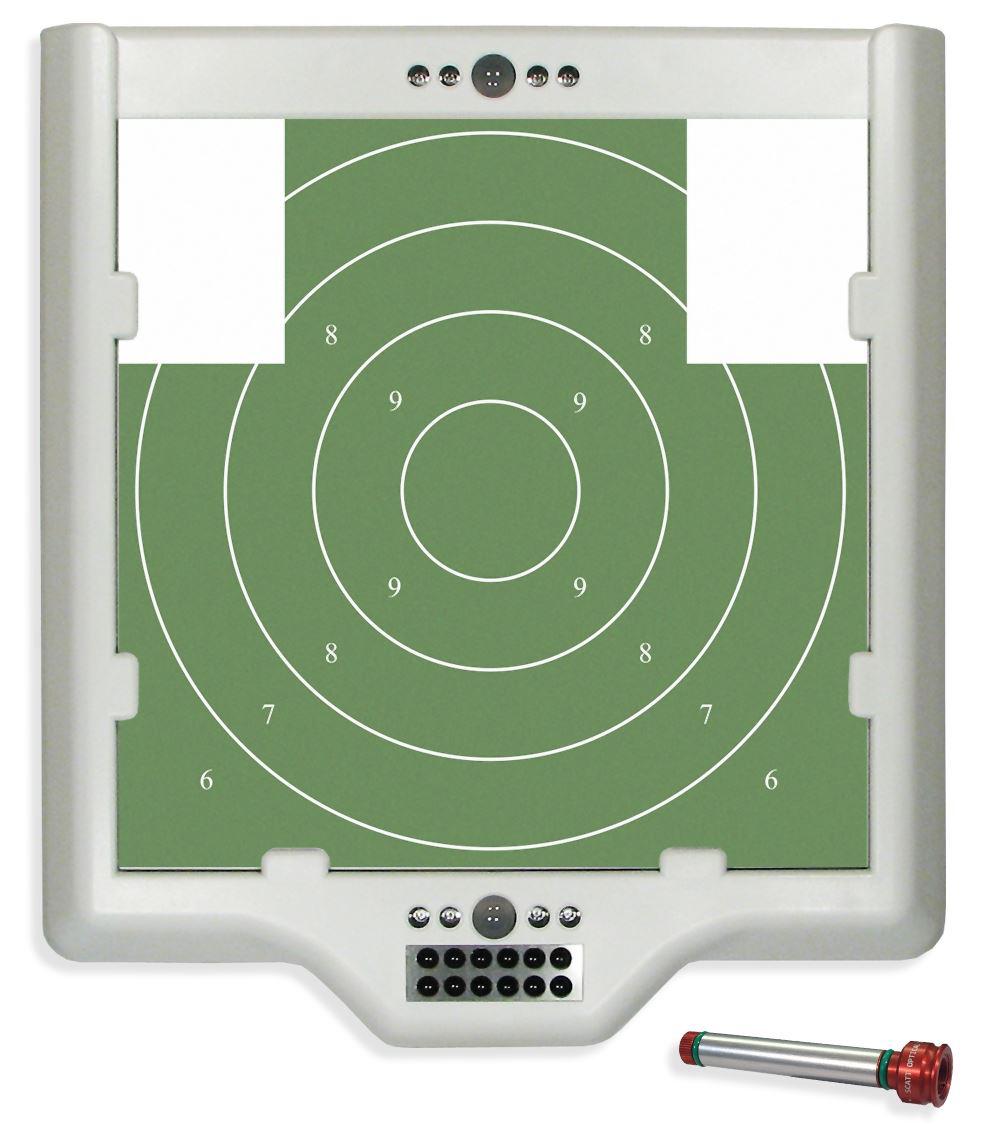

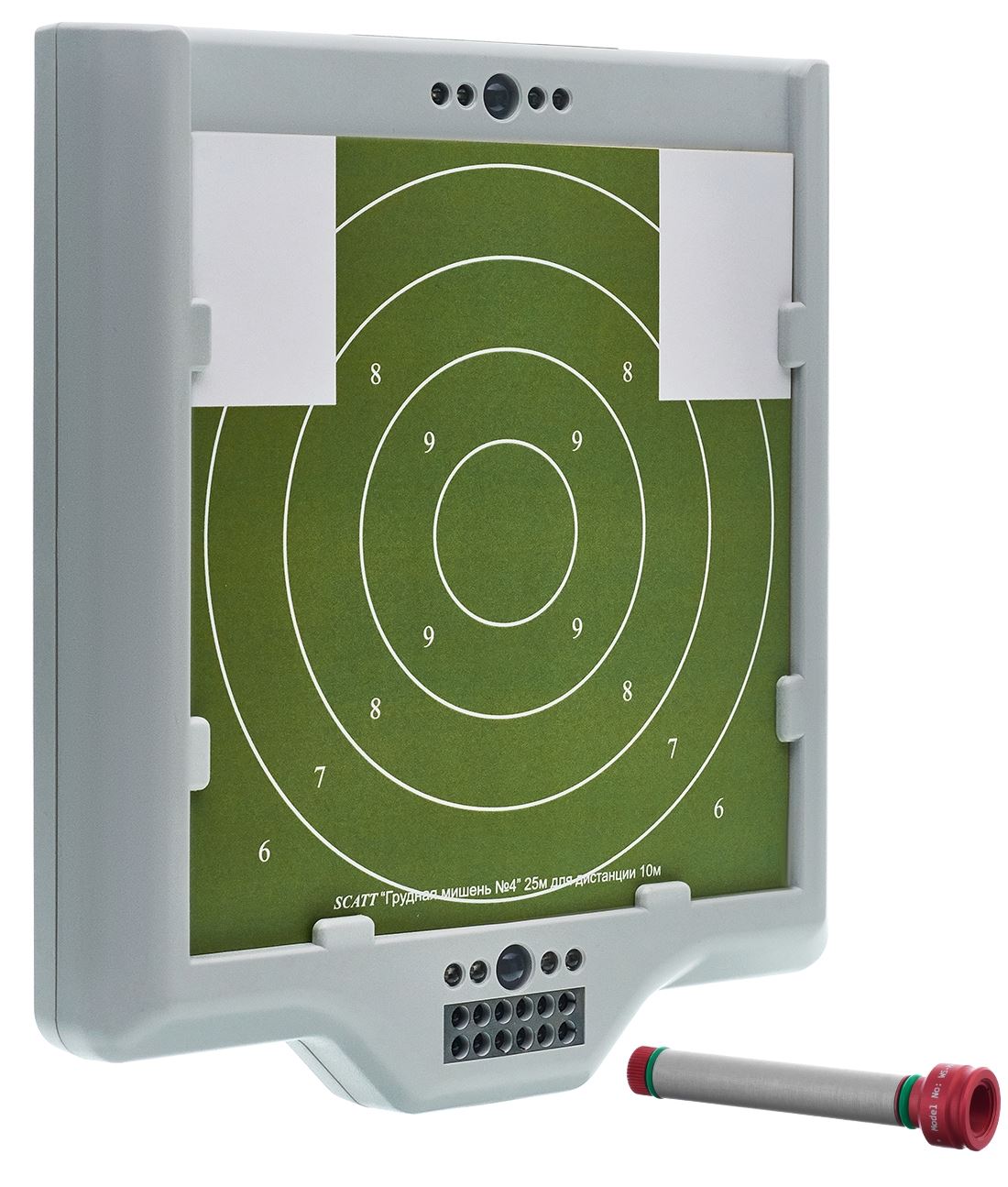

Electronic target (Model: WT-01) installed instead of the usual target (hangs on the wall or mounted on a photo tripod), connected to the control unit, without requiring a separate power supply. In the special grooves on the body of an electronic target put paper target appropriate to choose an exercise and distance. Electronic targets can be used at ranges from 4 to 6 meters, which allows to train in different locations, using one electronic target.
To target the top and bottom are the LEDs red and green, designed for training with limited time on the shot (e.g. sport pistol). The target has a built-in wireless connectivity, and can be used with wireless optical sensors SCATT.

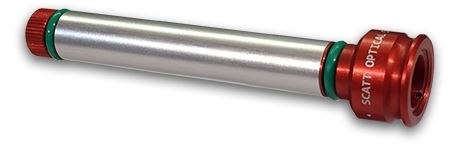

Wireless optical sensor (Model: WS-M02) fixed into barrel of 9mm caliber pistol, this highly accurately measures the weapon"s alignment during aiming and actuation of the trigger mechanism. Optical sensor automatically measures the distance to the electronic target. The program allows you to automatically calibrate the sensor relative to the sighting of weapons, so there is no need for an amendment to the sights of weapons. Sensor automatically compensates for the "blockage of weapons! Optical has two-way infrared connection to electronic target. Opening time from one battery (1.5V SW393SR) about 10,000 shots with an average time of sighting 3sec. In case of prolonged non-use, the sensor automatically switches to sleeping mode. Weight 6g.

Electronic target control (Model: WTC-01) connect to USB port of a computer by cable.

Target interface cable used to connect the electronic target to the control unit, has a length of 14m.

Target control unit"s interface cable used to connect the control unit to USB port of your computer, has a length of 1,5m.

Software SCATT Professional software has all the necessary features for efficient training and overall analysis of shooting results. Results are displayed in both digital and graphic forms and can be saved onto disk for further analysis (aim trajectory, shots and graphics, etc).

• Fasteners (to secure optical sensor on the gun)

• SCATT carrying bag

• SCATT & laptop carrying bag

If you have difficulty with choosing the model of simulator SCATT, most suitable for you, use the table comparing the characteristics of simulators SCATT.
